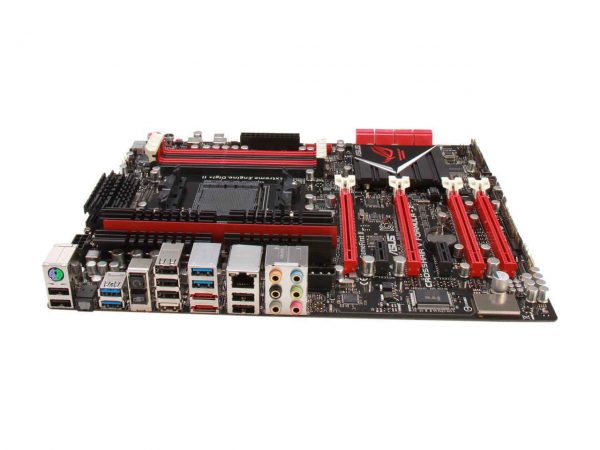

ROG CROSSHAIR V FORMULA Z

Model

Brand

ASUS

Series

ROG

Model

Crosshair V Formula-Z

Supported CPU

CPU Socket Type

AM3+

CPU Type

FX / Phenom II / Athlon II / Sempron 100 Series

Chipsets

Chipset

AMD 990FX + SB950

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2400(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1800(O.C.)/ 1600/ 1333/ 1066

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 2.0 x16

3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8)
1 x PCIe 2.0 x16 (x4 mode)

PCI Express x1

2 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s port(s), red, by AMD SB950 controller
2 x SATA 6Gb/s port(s), red, by ASMedia ASM1061 controller

SATA RAID

6 x SATA 6Gb/s port(s) (red) support Raid 0, 1, 5, 10 by AMD SB950

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

SupremeFX III

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel Gigabit LAN Controller

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

RJ45

1 x RJ45

USB 3.0

4 x USB 3.0

USB 1.1/2.0

8 x USB 2.0 (one port can be switched to ROG Connect)

eSATA

2 x eSATA 6Gb/s

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

1 x TPM connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
3 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
8 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
1 x FastBoot switch(es)

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

24 Pin

Features

Features

Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:
ROG Connect:
– RC Diagram
– RC Remote
– RC Poster
– GPU TweakIt
Extreme Engine Digi+ II:
– 8 + 2 phase power design
– 2 -phase Memory power design
UEFI BIOS features:
– ROG BIOS Print
– GPU.DIMM Post
iROG
Extreme Tweaker
Overclocking Protection:
– COP EX (Component Overheat Protection – EX)
– ASUS C.P.R. (CPU Parameter Recall)

Special Features:
ASUS Power Design:
– ASUS EPU
TurboV
ASUS Exclusive Features:
– AI Suite II
– Ai Charger+
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution:
– ASUS Fan Xpert
ASUS EZ DIY:
– ASUS O.C. Profile
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 3
ASUS Q-Design:
– ASUS Q-Shield
– ASUS Q-Code
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector

Operating System Support:
Windows 8.1
Windows 8
Windows 7
Windows Vista
Windows XP

BIOS:
64Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a, Multi-Language BIOS

Manageability:
WOL by PME, WOR by PME, PXE

Support Disc:
Drivers
GameFirst II
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ROG CPU-Z
ASUS WebStorage
ASUS Utilities (AI SUITE II/TurboV EVO/ASUS Update)

Packaging

Package Contents

Accessories:
User’s manual
I/O Shield
6 x SATA 6Gb/s cable(s)
1 x 3-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x 12 in 1 ROG Cable Label(s)
