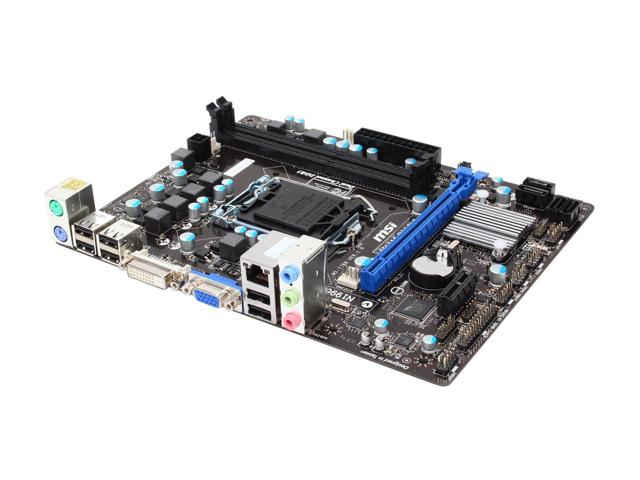

msi h61m-p31 b3 ddr3 ob

Model

Brand

MSI

Model

H61M-P31/W8

Supported CPU

CPU Socket Type

LGA 1155

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Chipsets

Chipset

Intel H61

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 1066/1333

Maximum Memory Supported

16GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express x1

1 x PCI Express x1

Storage Devices

SATA 3Gb/s

4 x SATA 3Gb/s

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111E

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

2

Video Ports

D-Sub + DVI

USB 1.1/2.0

6 x USB 2.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

4 x USB 2.0

Other Connectors

ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU x 1 / System x 2 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x Serial port connector
1 x Parallel port connector

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

8.9″ x 6.81″

Power Pin

24 Pin

Features

Features

OC Genie II: Auto OC to boost performance in 1 sec

ClickBIOS Concept: Easy-to-use UEFI BIOS interface

Support VGA & DVI-D output

IGP Supports DirectX 11, Shader Model 5.0, OCL 1.1 and OpenGL 3.1

*The DirectX 11 effect is only supported with the 3rd Gen Intel processors for LGA 1155 socket
