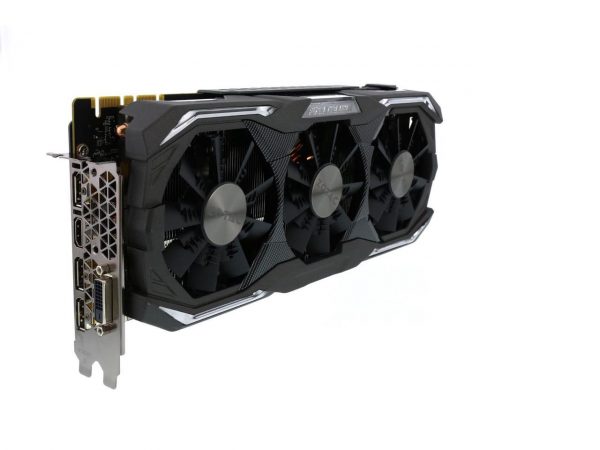

GTX 1080 8GB DDR5 AMP EXTREME

Model

Brand

ZOTAC

Model

ZT-P10800B-10P

Interface

Interface

PCI Express 3.0

Chipset

Chipset Manufacturer

NVIDIA

GPU Series

NVIDIA GeForce GTX 10 Series

GPU

GeForce GTX 1080

Core Clock

1771 MHz

Boost Clock

1911 MHz

CUDA Cores

2560

Memory

Effective Memory Clock

10.8 GHz

Memory Size

8GB

Memory Interface

256-Bit

Memory Type

GDDR5X

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.5

Ports

HDMI

1 x HDMI 2.0b

Multi-Monitor Support

4

DisplayPort

3 x DisplayPort 1.4

DVI

1 x DL-DVI

Details

SLI Support

2-Way SLI

Virtual Reality Ready

Yes

Cooler

Triple Fan IceStorm

Operating Systems Supported

Windows 10 / 8 / 7

System Requirements

Recommended Power Supply: 500W
Power Consumption: 270W

Power Connector

2 x 8-Pin

Dual-Link DVI Supported

Yes

HDCP Ready

Yes

Features

Features

IceStorm Cooling
– Variably configured copper heatpipes (4 x 8mm, 2 x 6mm) – Massive wide array aluminum fin stack

Metal Carbon ExoArmor
– Full Metal front and back protection with a metal front shroud and a metal wraparound backplate enhancing coverage and unifying design
– Detailed with carbon fiber utilizing a water transfer printing process
– The rigid metal help reduce vibrations which also help reduce noise

Spectra lighting system
– LED lighting on the front.
– Select from up to 7 colors + off
– up to 8 levels of brightness
– 4 lighting modes: Static, Breathe, Strobe, and Cycle

EKO Fans
– Push up to 30% more airflow
– Up to 15% more downward pressure
– Patented dual-blade design
– Reduction in deadzone, allowing more airflow coverage than ever before

PowerBoost
– Special capacitors with high temperature and power resistance.
– Benefit of reducing noise and power ripples to ensure a smoother inflow of power for high speed stability.

Freeze
– Fan stop automatically starts or stops the fans
– Extend the life of the fans
– Reduce noise performance

Form Factor & Dimensions

Max GPU Length

325 mm

Card Dimensions (L x H)

12.80″ x 5.83″

Slot Width

2.5 slots

Packaging

Package Contents

Accessories:
2 x Black mesh wrapped Dual 6-pin to 8-pin PCIe adapter
Driver Disk
User Manual
