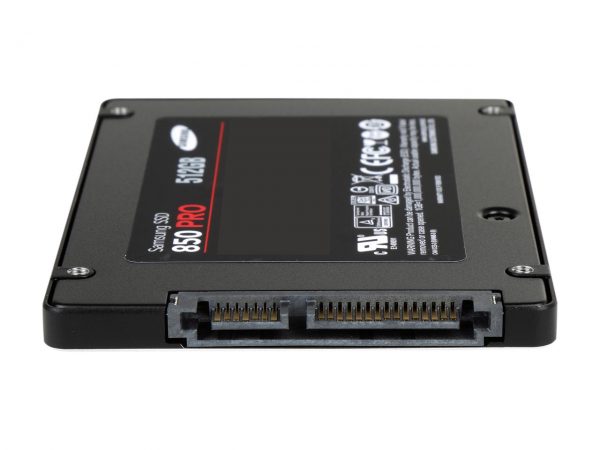

SAMSUNG EVO 850 PRO 512GB

Model

Brand

SAMSUNG

Series

850 PRO

Model

MZ-7KE512BW

Part Number

MZ-7KE512BW

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

2.5″

Capacity

512GB

Memory Components

3-D Vertical

Interface

SATA III

Controller

Samsung MEX Controller

Cache

0MB

Performance

Max Sequential Read

Up to 550 MBps

Max Sequential Write

Up to 520 MBps

4KB Random Read

Up to 100,000 IOPS

4KB Random Write

Up to 90,000 IOPS

MTBF

2,000,000 hours

Features

Features

V-NAND
Samsung’s flash memory is fabricated using an innovative 3D V-NAND architecture, which stacks 32 cell layers on top of one another. The result is higher density and higher performance using a smaller footprint and a breakthrough in overcoming the density limits of conventional planar NAND.

Efficient Power Management
The efficient design of the 850 PRO enables you work longer and more productively. Boasting the lowest power consumption of any SSD when in standby or full use, the 850 PRO uses less energy while maintaining class-leading performance. The 850 PRO fully supports Device Sleep mode for Ultrabook, consuming only 2 milliwats (2mw) of power in its ultra low power state. Plus, its low power DDR2 cache memory provides high performance while consuming up to 30 percent less power when active and up to 93 percent less power when idle than typical DDR2 or DDR3 memory.

Extended Data Security
Protect your PCs hardware and personal data when you take your laptop on the road with the 850 PRO’s Self-Encrypting Drive (SED) technology. The drive includes an AES-256-bit hardware-based, full disk encryption engine that secures your data without the performance loss often experienced with software-based encryption. The 850 PRO’s advanced security complies with the TCG Opal v2.0 standard and is compatible with the Microsoft eDrive IEEE 1667 protocol. Plus, you can quicklyerase data or sanitize your drive with the crypto erase feature.

Dynamic Thermal Guard Protection
The 850 PRO includes Dynamic Thermal Guard protection, which sustains performance while minimizing the risk of overheating. This feature monitors and maintains the drive’s optimal operating temperature with a throttle feature that automatically drops the SSD’s temperature to protect your data while ensuring the responsiveness you expect.

Environmental

Power Consumption (Idle)

0.05W

Power Consumption (Active)

3.50W

Operating Temperature

0°C ~ +70°C

Operating Humidity

5% to 95% RH

Dimensions & Weight

Height

7.00mm

Width

69.85mm

Depth

100mm

Weight

0.14 lb.

Plug Standards

Electrical Outlet Plug Type

Plug Type “A” (USA, Canada, Mexico, Japan)
