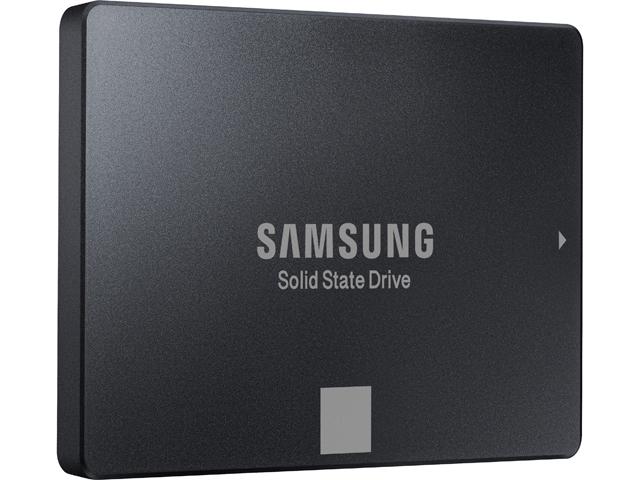

SAMSUNG EVO 750 500GB

Model

Brand

SAMSUNG

Series

750 EVO

Model

MZ-750500BW

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

2.5″

Capacity

500GB

Interface

SATA III

Controller

MGX

Cache

512MB

Performance

Max Sequential Read

Up to 540 MBps

Max Sequential Write

Up to 520 MBps

4KB Random Read

Up to 10,000 IOPS (QD1)
Up to 98,000 IOPS (QD32)

4KB Random Write

Up to 40,000 IOPS (QD1)
Up to 88,000 IOPS (QD32)

MTBF

1,500,000 hours

Environmental

Power Consumption (Idle)

50mW

Power Consumption (Active)

2.3W/2.5W (Read/Write)

Operating Temperature

0°C ~ +70°C

Storage Temperature

-40°C ~ +85°C

Operating Humidity

5% to 95% RH

Max Shock Resistance

Non-Operating: 1500G, duration 0.5m sec, 3 axis

Max Vibration Resistance

Non-Operating: 20~2000Hz, 20G

Dimensions & Weight

Height

6.80mm

Width

69.85mm

Depth

100mm

Weight

45.00g
