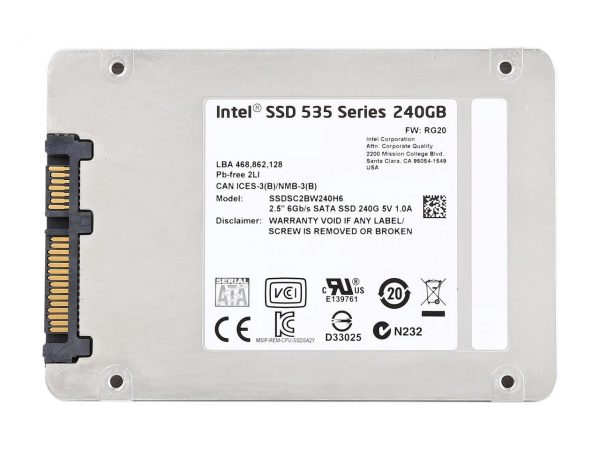

INTEL 535 240 GB

Model

Brand

Intel

Series

535 Series

Model

SSDSC2BW240H6R5

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

2.5″

Capacity

240GB

Memory Components

MLC

Interface

SATA III

Performance

Max Sequential Read

Up to 540 MBps

Max Sequential Write

Up to 490 MBps

4KB Random Read

Up to 41,000 IOPS

4KB Random Write

Up to 80,000 IOPS

Read Latency

80 µs

Write Latency

85 µs

MTBF

1,200,000 hours

Environmental

Power Consumption (Idle)

55mV

Power Consumption (Active)

165mV

Operating Temperature

0°C ~ +70°C

Storage Temperature

-55°C ~ +95°C

Max Shock Resistance

1,500G/0.5ms

Max Vibration Resistance

Operating: 2.17 GRMS (5-700Hz)
Non-operating: 3.13 GRMS (5-800Hz)

Dimensions & Weight

Height

7.00mm

Width

69.85mm

Depth

100mm

Weight

78.00g
