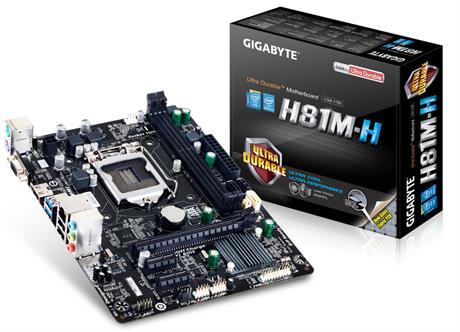

GIGABYTE H81M-H

Deskripsi

• Prosesor
  1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^®processors/Intel^® Celeron^® processors in the LGA1150 package
  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. Intel^®H81 Express Chipset
• Memori
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Kartu Grafis Terintegrasi
  Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200
  2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
     * Support for HDMI 1.4a version.
  3. Maximum shared memory of 1 GB
• Audio
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Slot Tambahan
  1. 1 x PCI Express x16 slot, running at x16
  2. 2 x PCI Express x1 slots

  (The PCI Express slots conform to PCI Express 2.0 standard.)

• Antarmuka Penyimpanan
  Chipset:

  1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
  2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
• USB
  Chipset:

  1. 2 x USB 3.0/2.0 ports on the back panel
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Konektor I/O Internal
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 2 x USB 2.0/1.1 headers
  10. 1 x Clear CMOS jumper
• Konektor Panel Belakang
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 2 x USB 3.0/2.0 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
• Pengontrol I/O
  1. iTE^® I/O Controller Chip
• Pengawasan Hardware
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Fitur Unik
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
     * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
     @BIOS
     EasyTune
     EZ Setup
     USB Blocker
     Smart TimeLock
     Smart Recovery 2
  4. Support for ON/OFF Charge
• Paket Sofware
  1. Norton^® Internet Security (OEM version)
• Sistem Operasi
  1. Support for Windows 8/7
• Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17cm
• Keterangan
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
