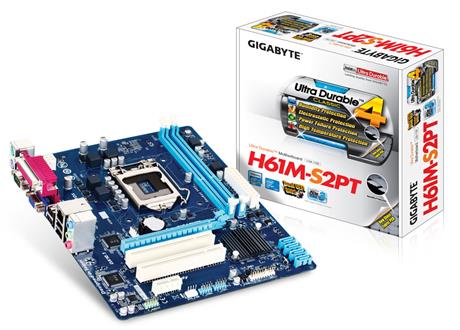

GIGABYTE H61M-S2PT

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1155 package
2. L3 cache varies with CPU

(Some Intel^® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

1. Intel^® H61 Express Chipset

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
   * To support XMP memory, you must install an Intel^® 22nm (Ivy Bridge) CPU.

(Please refer “Memory Support List” for more information.)

Integrated Graphics Processor:

1. 1 x D-Sub port

1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. Realtek^® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
   * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
2. 1 x PCI Express x1 slot
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots

Chipset:

1. 4 x SATA 3Gb/s connectors

Chipset:

1. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x parallel port
5. 1 x serial port
6. 4 x USB 2.0/1.1 headers
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)

1. iTE^® I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress Recovery2
4. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
5. Support for ON/OFF Charge

1. Norton^® Internet Security (OEM version)

1. Support for Windows 8.1/8/7/XP

1. Micro ATX Form Factor; 24.4cm x 20cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
