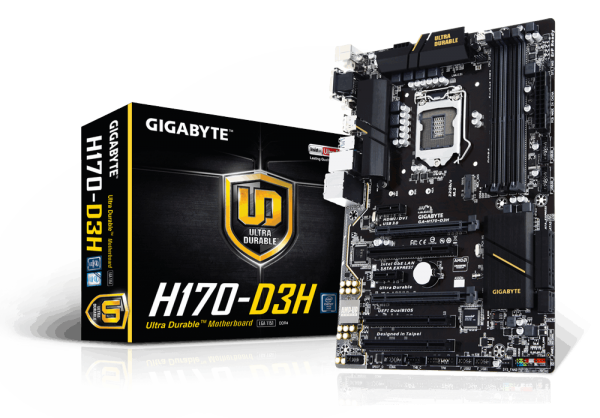

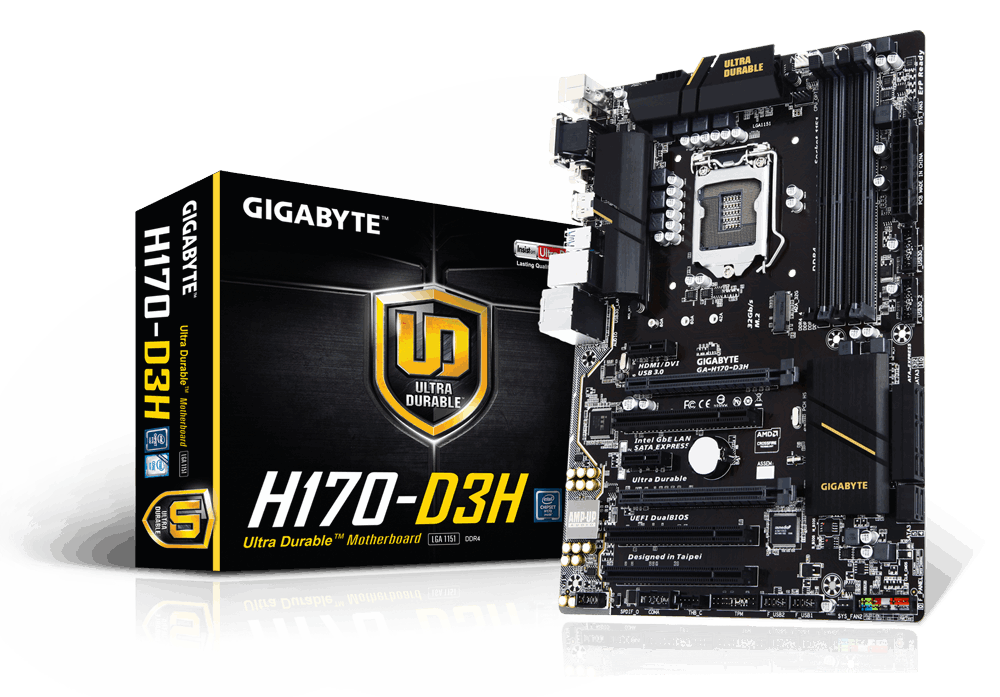

GIGABYTE H170 D3H

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^®Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® H170 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
   * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512 MB

1. Realtek^® ALC1150 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel^® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 3 x PCI slots

1. Support for 2-Way AMD CrossFire™ technology

1. 1 x M.2 Socket 3 connector
2. 2 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-7 Internal Connectors,” for the supported configurations with the M.2, SATA Express, and SATA connectors.

1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 2 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling fan header (CPU_OPT)
8. 3 x system fan headers
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x S/PDIF Out header
12. 2 x USB 3.0/2.0 headers
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Thunderbolt™ add-in card connector
16. 1 x serial port header
17. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

1. iTE^® I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   Ambient LED
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. Intel^® Smart Response Technology
3. Intel^® Small Business Advantage
4. cFosSpeed

1. Support for Windows 10/8.1/7*
   * Please download “Windows^® USB Installation Tool” to install Windows^® 7.

1. ATX Form Factor; 30.5cm x 21.4cm

1. GA-H170-D3H motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User’s Manual
6. One G Connector

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
