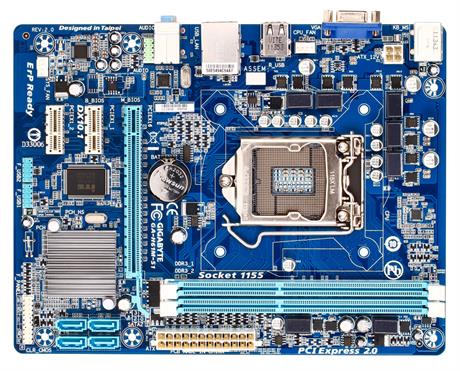

GIGABYTE GA H61M-DS2 R3 / GA H61M-S1

Deskripsi

• CPU
  1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1155 package
  2. L3 cache varies with CPU

  (Some Intel^® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

• Chipset
  1. Intel^® H61 Express Chipset
• Memory
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
     * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics
  Integrated Graphics Prosessor:

  1. 1 x D-Sub port
• Audio
  1. Realtek ALC887 HD audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. 1 x Realtek RTL8111F LAN chip (10/100/1000 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
     * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
  2. 2 x PCI Express x1 slots
     (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface
  Chipset:

  1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
• USB
  Chipset:

  1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 3Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 2 x USB 2.0/1.1 headers
  9. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 4 x USB 2.0/1.1 ports
  5. 1 x RJ-45 port
  6. 3 x audio jacks (Line In/Line Out/Microphone)
• I/O Controller
  1. iTE IT8728 chip
• H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
     * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
• BIOS
  1. 1 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Recovery2
  4. Support for EasyTune
     * Available functions in EasyTune may differ by motherboard model.
  5. Support for ON/OFF Charge
• Bundle Software
  1. Norton Internet Security (OEM version)
• Operating System
  1. Support for Microsoft^® Windows^® 8/7/Vista/XP
• Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
• Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
