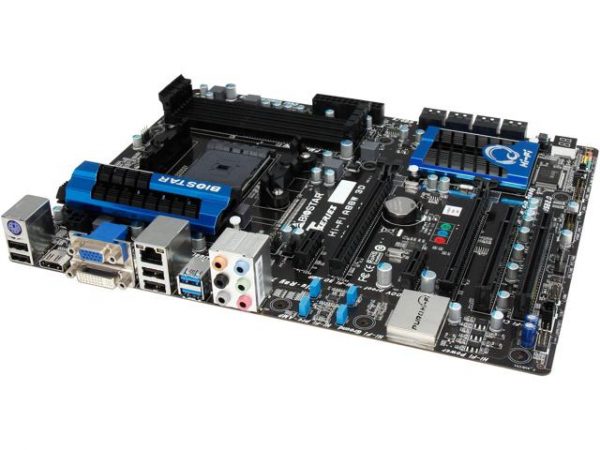

BIOSTAR HIFI A88W 3D

Model

Brand

BIOSTAR

Model

Hi-Fi A88W 3D

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

A- Series/E-Series

Chipsets

Chipset

AMD A88X (Bolton D4)

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express 2.0 x16

1 (x4 mode)

PCI Express x1

2 x PCI Express x1

PCI Slots

2 x PCI Slots

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek RTL8111G

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 Keyboard

Video Ports

1 x DVI
1 x VGA

HDMI

1 x HDMI

RJ45

1 x RJ-45

USB 3.0

2 x USB 3.0

USB 1.1/2.0

4 x USB 2.0

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
2 x CPU FAN Header
3 x System FAN Header
1 x Serial Header
1 x CIR Header

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.3″

Features

Features

Windows 8 Ready

Supports PURO Hi-Fi 3D

Supports 100% Solid capacitor

Supports Rapid Switch

Supports Rapid Debug3

Supports BIOS-Flasher

Supports Charger Booster

Supports BIOS Online Update

Packaging

Package Contents

BIOSTAR Hi-Fi A88W Motherboard
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
