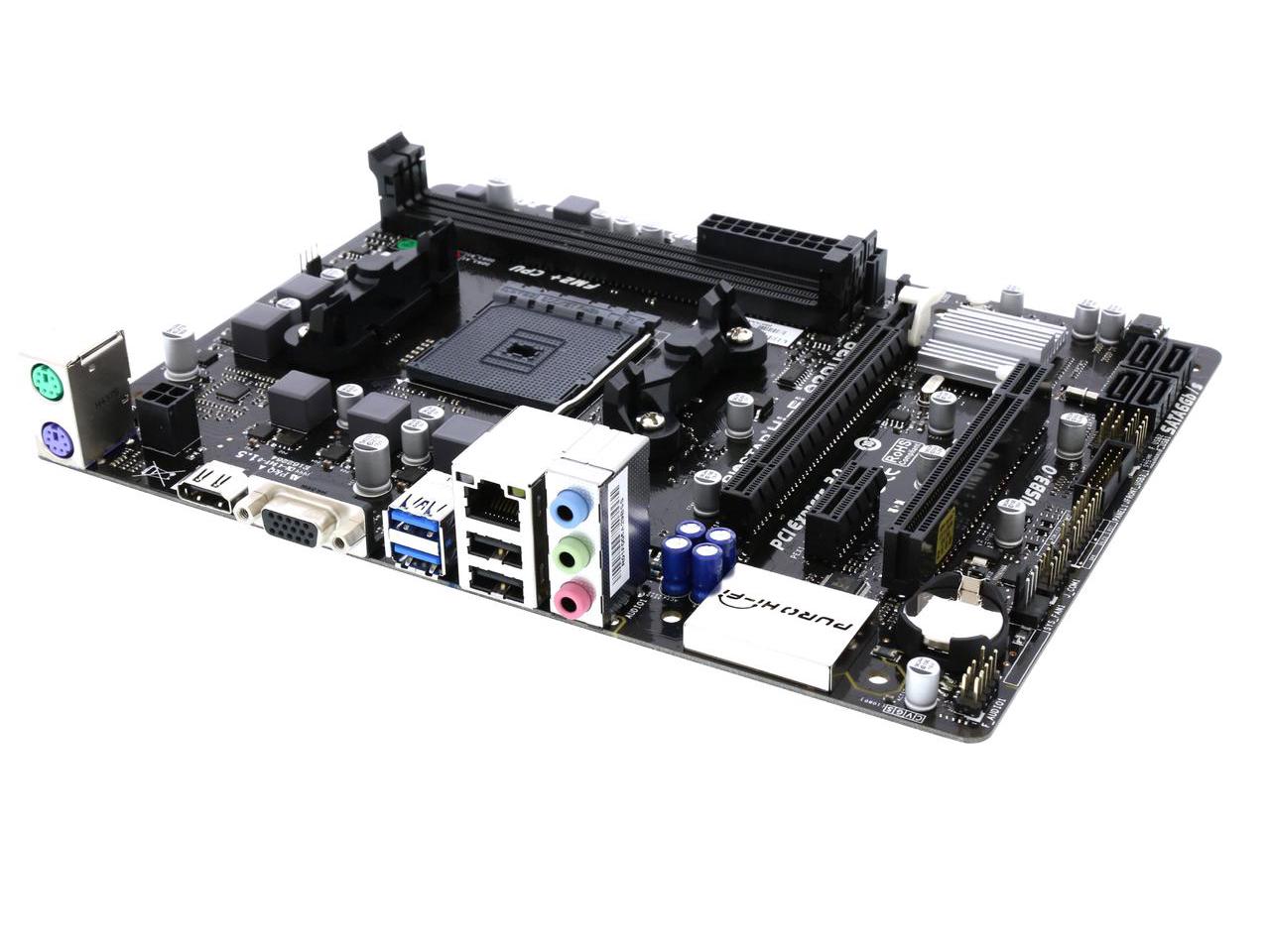

BIOSTAR HIFI A70UD3P

Model

Brand

BIOSTAR

Model

Hi-Fi A70U3P

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

A- Series/E-Series

Chipsets

Chipset

AMD A70M

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 2600(OC)/ 2400(OC)/ 2133/ 1866/ 1600/ 1333/ 1066/ 800

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI-E x16 3.0 Slot (supported by FM2+ CPU)

PCI Express x1

1 x PCI-E x1 2.0 Slot

PCI Slots

1 x PCI Slot

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

By CPU model
AMD Dual Graphics Technology
Supports DX11.1
Supports HDCP

Onboard Audio

Audio Chipset

Realtek ALC662

Audio Channels

6 Channels

Onboard LAN

LAN Chipset

Realtek 8111G

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 Mouse
1 x PS/2 Keyboard

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

2 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

9.25″ x 7.01″

Features

Features

Supported Socket FM2+/FM2 processors AMD A-series/ E2-series processor

Supported AMD Mutil Core (x4, x2)

AMD 100W processor support

AMD A70M Chipset

2 DIMM supported DDR3-2600(OC)/ 2400(OC)/ 2133/ 1866/ 1600/ 1333/ 1066/ 800

BIOSTAR Hi-Fi Technology

AMD Dual Graphics Technology

Supports PURO Hi-Fi

Supports 100% Solid capacitor

Supports BIOS-Flasher

Supports Charger Booster

Supports BIOS Online Update

Packaging

Package Contents

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
