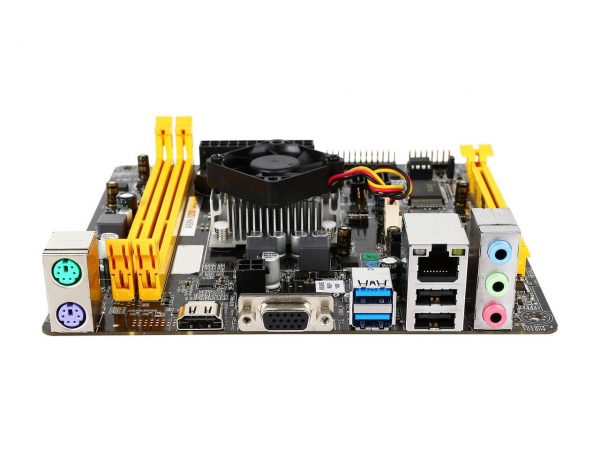

BIOSTAR A68N-5200

Model

Brand

AMD

Model

A68N-5200

Combo Type

Motherboard/CPU/VGA Combo

Bundle

CPU

AMD Fusion APU A6-5200 Quad-Core Processor

Supported CPU

CPU Type

AMD APU

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3/DDR3L 1600/ 1333/ 1066/ 800

Maximum Memory Supported

16GB

Expansion Slots

PCI Express x16

1 x PCI-E x16 2.0 Slot (x4)

Storage Devices

SATA

2 x SATA 6.0Gb/s

Onboard Video

Onboard Video Chipset

AMD Radeon HD8400 Graphics, On Board Graphic Max. Memory Share Up to 2GB
Supports DX11.1
Supports HDCP

Onboard Audio

Audio Chipset

Realtek ALC662

Audio Channels

6 Channels

Onboard LAN

LAN Chipset

Realtek 8111G

LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 Mouse
1 x PS/2 Keyboard

Video Ports

1 x VGA Port

HDMI

1 x HDMI

USB 1.1/2.0

2 x USB 2.0

USB 3.0

2 x USB 3.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Header

Other Connectors

1 x Printer Header
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header

Features

Features

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

OS SUPPORT:
Support Windows XP / 7 / 8 / 8.1 / 10(x64)

BUNDLE SOFTWARE:
BullGuard
BIO-Remote2
Smart Speed LAN

FEATURES:
Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update

Physical Spec

Form Factor

Mini ITX

Dimensions (W x L)

6.7″ x 6.7″
