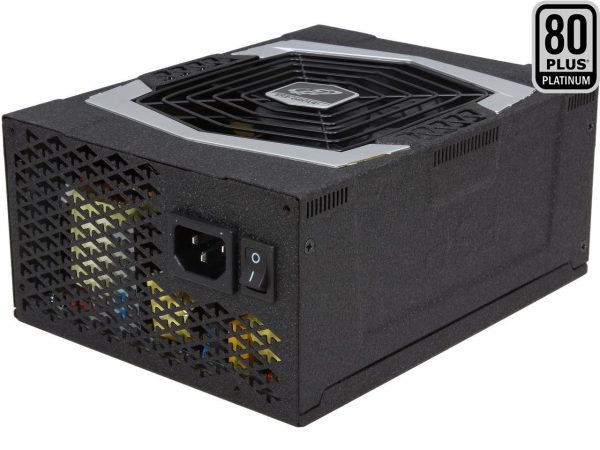

AURUM PT-850W PLATINUM

Model

Brand

FSP Group

Model

PT850FM

Details

Type

ATX12V / EPS12V

Maximum Power

850W TOTAL CONTINUOUS OUTPUT @ 40°C

Fans

135mm chassis Fan

PFC

Active

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

8 x 6+2-Pin

SLI

Yes

Haswell Support

Ready

CrossFire

CrossFire Ready

Modular

Full Modular

Energy-Efficient

80 PLUS PLATINUM Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 – 240 V

Input Frequency Range

47 – 63 Hz

Input Current

10 Amp (maximum) at 100-127Vrms/ 60 Hz
5Amp (maximum) at 200-240 Vrms/ 50 Hz.

Output

25A @ +3.3V DC
25A @ +5V DC
70A @ +12V DC
0.8A @ -12V DC
3.0A @ +5Vsb DC Standby

MTBF

>100,000 Hours

Approvals

TUV, CE, UL, FCC, BSMI, GOST, C-tick, CCC

Dimensions

3.38″ x 7.48″ x 5.90″ (H x W x D)

Weight

4.60 lbs.

Features

Connectors

MAIN 24PIN, (8)PCI-E 6+2Pin, (2)4+4 PIN, (13)SATA,(6)MOLEX 4-PIN, (1)FDD 4-PIN

Features

AURUM PT high wattage series PSUs provides world-class performance, single +12V with 80 PLUS® Platinum-certified rating for over 92% efficiency. Modular cable design allows use of only the cables you need resulting in improved internal airflow and reduced system clutter. With 13 SATA and 8 PCI-E cables, PT series provide the most flexible support for your hardware setup. Unique SATA array cable design gives better cable management. FSP unique arrow flow tech provides remarkable air ventilation and superior cooling performance. Synchronize 3.3V/5V/12V with stable signal, allows AURUM PT to provide better ripple/noise performance. 105 °C Japanese-made Capacitor and Solid Capacitor provide a higher quality over regular electrolytic caps. For those of you that are active power users, system builders, and hardware enthusiasts, AURUM PT series is your ideal solution for your gaming system, mining system or current PC upgrade.
