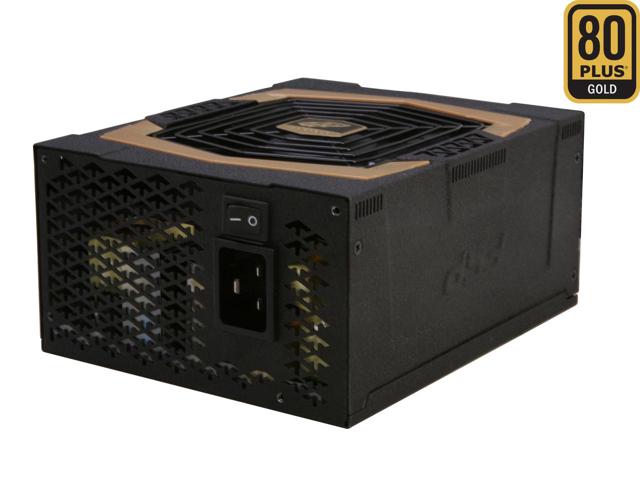

AURUM PRO-1200

Model

Brand

FSP Group

Model

AU-1200PRO

Series

AURUM Pro

Details

Type

ATX12V / EPS12V

Maximum Power

1200W

Fans

1 x 135mm

PFC

Active

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

8 x 6+2-Pin

SATA Power Connector

10

SLI

SLI Certified

CrossFire

CrossFire Certified

Modular

Modular

Efficiency

> 90%

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

115V AC to 230V AC

Input Frequency Range

47 – 63 Hz

Input Current

10A @ 115V, 5A @ 230V

Output

25A @ +3.3V DC
25A @ +5V DC
100A @ +12V DC
0.8A @ -12V DC
3.0A @ +5Vsb DC Standby

MTBF

>100,000 Hours

Approvals

OCP, CE, FCC, CB, UL, TUV, GOST, CCC

Dimensions

5.9″ x 7″ x 3.37″ (W x D x H)

Weight

5.41 lbs.

Features

Connectors

1 x 24PIN
1 x 8-PIN
1 x 4+4 PIN
8 x PCI-E 6+2Pin
10 x SATA
6 x MOLEX 4-PIN
1 x FDD 4-PIN
2 x Fan Connector

Features

1200-WATT | ATX 2.3 | EPS 2.92 | SLI Certified

Compatible with Latest Intel/AMD CPUs

SUPPORTS Intel Core i3/ i5/ i7

ATI CrossFireX Certified

80 PLUS Gold Certified | High Efficiency > 90%

Quiet, long lasting 135mm HDB(Hydro Dynamic Bearing) Fan

Modular Cable Management System

Low Profile Flat Cabling System

True Single +12V output circuits

Industrial Grade Components

105 ºC Japanese-Made Capacitor

Arrow-Shaped Ventilation Holes

Unique Rugged Granite-Touch Finishing

Thermal Coated (Black) with Gold Crown

2x external fan connectors

8x 6+2pin PCI-Express graphic card connectors

Ture Single Reail – Dual Transformer Matrix Design

Complete Protections: OCP, OVP, SCP, OPP, OTP, UVP

Energy Saver Standby @ 1-Watt
