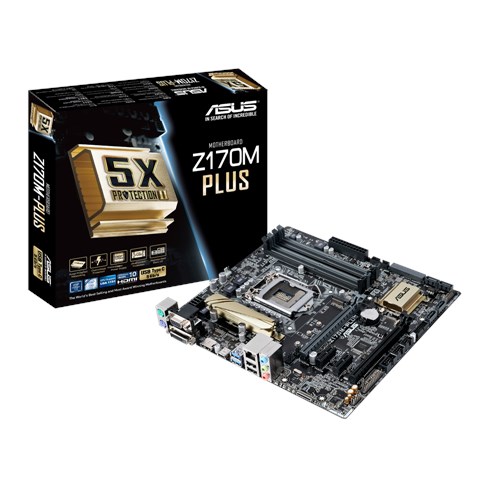

ASUS Z170M-PLUS

Deskripsi

• CPU
  Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z170
• Memori
  4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Grafis
  Integrated Graphics Processor- Intel® HD Graphics support
  Dukungan output Multi-VGA : HDMI/DVI/DVI-D/RGB port
  – Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Dukungan Multi-GPU
  Supports AMD Quad-GPU CrossFireX™ Technology
• Slot Ekspansi
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  2 x PCIe 3.0/2.0 x1
• Storage
  Intel® Z170 chipset :
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*¹
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
  Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *²
  – Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Port USB
  Intel® Z170 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)
  Intel® Z170 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 4 at mid-board)
  Intel® Z170 chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, black, Type-C, Reversible, Support 3A power output)
• Fitur-Fitur Khusus
  ASUS 5X Protection II :
  – ASUS LANGuard – 2.5X higher surge tolerance
  – ASUS Overvoltage Protection – World-class circuit-protecting power design
  – ASUS DIGI+ VRM – 7 Phase digital power design
  – ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
  – ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – TurboV EVO
  – GPU Boost
  – AI Suite 3
  – Ai Charger
  – M.2 & SATA Express
  – Anti-Surge
  – ESD Guards
  – USB 3.0 Boost
  – Disk Unlocker
  – Mobo Connect
  – PC Cleaner
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution & MOS Heatsink
  – ASUS Fan Xpert 3
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *³
• Port I/O Belakang
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• I/O Internal
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3
  1 x LPT header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Aksesori
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Kemampuan Manajemen
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Disc Pendukung
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  mATX Form Factor
  9.6 inch x 8.95 inch ( 24.4 cm x 22.7 cm )
• Catatan
  *1: These functions will work depending on the CPU installed.
  *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
