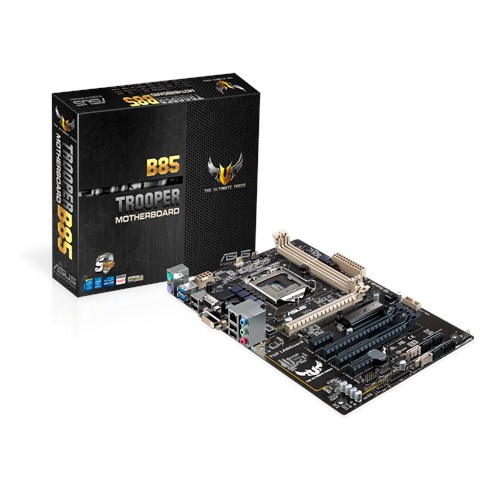

ASUS SABERTOOTH TUF B85 TROOPER

Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® B85

2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously

Supports AMD Quad-GPU CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x16 (x1 mode, black)
2 x PCIe 2.0 x1

Intel® B85 chipset :
4 x SATA 6Gb/s port(s), black
2 x SATA 3Gb/s port(s), beige,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

Realtek® 8111GR

Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
Separate layer for left and right track, ensuring both sound deliver equal quality

Intel® B85 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board), 2 port(s) supports USB Over-Voltage Protection

TUF ENGINE! Power Design :
– 4 +1 Digital Phase Power Design
– TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
– ASUS DIGI+ VRM Utility
Ultimate COOL! Thermal Solution :
– TUF Thermal Radar Core
Safe & Stable! Guardian Angel :
– TUF ESD Guards 2
– TUF LANGuard
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– USB 3.0 Boost
– Disk Unlocker
ASUS EZ DIY :
– ASUS O.C. Profile
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS UEFI BIOS EZ Mode
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM

Windows® 8.1
Windows® 8
Windows® 7

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, beige)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin, [Black])
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)

User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 2.7, WOL by PME, PXE

Drivers
ASUS Utilities
ASUS/TUF CPU-Z
Anti-virus software (OEM version)

ATX Form Factor
12 inch x 7.1 inch ( 30.5 cm x 18 cm )
