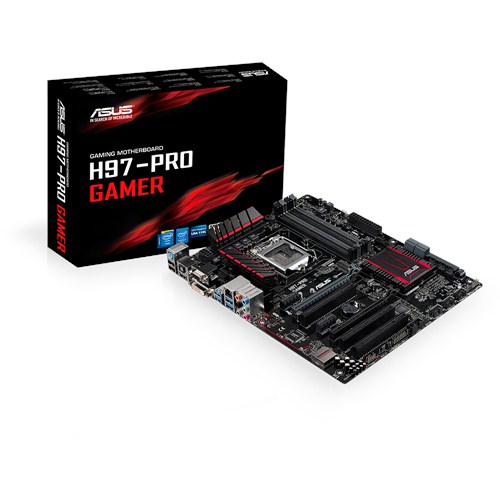

ASUS H97 PRO GAMING

Deskripsi

• CPU
  Intel® Socket 1150 for the 5^th/New 4^th/4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H97
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 2.0 x16 (max at x4 mode, black) *¹
  2 x PCIe x1
  3 x PCI
• Storage
  Intel® H97 chipset :
  1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*²
  4 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *³
• LAN
  Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II
  Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
• Audio
  SupremeFX 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
  – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  – High quality 115 dB SNR stereo playback output
  – High-fidelity audio OP AMP(s)
  Audio Feature :
  – SupremeFX Shielding™ Technology
  – ELNA premium audio capacitors
  – Optical S/PDIF out port(s) at back panel
  – Sonic Radar II
• USB Ports
  Intel® H97 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® H97 chipset :
  8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
• ROG Exclusive Features
  GameFirst II
• Special Features
  ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
  – The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration
  Gamer’s Guardian:
  – ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  – DRAM Overcurrent Protection
  – 10K Black Metallic Capacitors
  – Stainless Steel Back I/O
  – DIGI+ VRM
  ASUS TPU :
  – Auto Tuning
  – TurboV
  – GPU Boost without switch
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  – USB 3.0 Boost
  – Disk Unlocker
  Interactive HomeCloud
  – Media Streamer
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution
  – ASUS Fan Xpert 3
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 2
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Shield
  – ASUS Q-Slot
  – ASUS Q-DIMM
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0
  6 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 for M Key, type 2260/2280 devices
  1 x TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Thermal sensor connector(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User’s manual
  ASUS Q-Shield
  4 x SATA 6Gb/s cable(s)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
  CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1: When PCIEX1_1 or PCIEX1_2 is occupied by x1 device,PCIEX16_2 will be at x2 mode.
  *2: M.2 Socket 3 shares bandwidth with PCIEX1_1 and PCIEX1_2(in PCIE mode) & SATA6G_4(in SATA mode), and supports M Key and type 2260/2280 storage devices.
  *3: These functions will work depending on the CPU installed.
