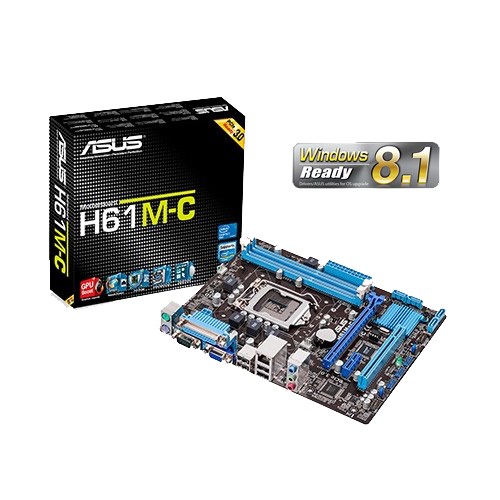

ASUS H61M-C PROMO

GENERAL

• Product Type
  Motherboard – micro ATX
• Chipset Type
  Intel H61 Express
• Compatible Processors
  Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series
• Processor Socket
  LGA1155 Socket
• Max Processors Qty
  1
• Manufacturer
  Asus

EXPANSION / CONNECTIVITY

• Expansion Slots
  1 x CPU
  2 x DIMM 240-pin
  1 x PCIe 3.0 x16
  1 x PCIe 2.0 x1
  1 x PCI
• Storage Interfaces
  SATA-300 -connectors: 4 x 7pin Serial ATA – 4 devices
• Internal Interfaces
  6 x USB 2.0 – header
  1 x audio – header
• Power Connectors
  4-pin ATX12V connector, 24-pin main power connector

PROCESSOR

• Max Supported Qty
  1
• Installed Qty
  0

INTERFACE PROVIDED

• Qty
  1, 4
• Type
  LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel
• Connector Type
  mini-jack

MEMORY

• Max Allocated RAM Size
  1696 MB

NETWORKING

• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Network Controller
  Realtek RTL8111F
• Network
  Gigabit Ethernet

PROCESSOR / MEMORY / STORAGE

• Max Supported Qty
  1

AUDIO

• Audio Codec
  Realtek ALC887
• Compliant Standards
  High Definition Audio

MISCELLANEOUS

• Cables Included
  2 x Serial ATA cable
• Product Type
  motherboard
• Included Accessories
  I/O back plate

VIDEO

• Video Output
  graphics adapter (CPU required)

RAM

• Max Supported Size
  16 GB
• Features
  dual channel memory architecture

AUDIO OUTPUT

• Compliant Standards
  High Definition Audio
• Type
  sound card
• Audio Codec
  Realtek ALC887
• Audio
  High Definition Audio (8-channel)

GRAPHICS

• Max Allocated RAM Size
  1696 MB

LAN

• Network Interfaces
  Gigabit Ethernet
• Network Controller
  Realtek RTL8111F

SUPPORTED RAM

• Bus Clock
  1600 MHz, 1333 MHz, 1066 MHz, 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.)
• Features
  Dual channel memory architecture
• Registered or Buffered
  Unbuffered
• Max Size
  16 GB
• Technology
  DDR3
• Supported RAM Integrity Check
  Non-ECC

HEADER

• Brand
  ASUS
• Product Line
  ASUS
• Model
  H61M-C
• Packaged Quantity
  1
• Compatibility
  PC

MAINBOARD

• Form Factor
  micro ATX
• Processor Socket
  LGA1155 Socket
• Compatible Processors
  Celeron, Core i3, Core i5, Core i7, Pentium, Xeon E3-1200 series
• Chipset Type
  Intel H61 Express
• Supported RAM Technology
  DDR3 SDRAM
• Supported RAM Speed
  1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz (O.C.), 2000 MHz (O.C.), 2133 MHz (O.C.), 2200 MHz (O.C.)
• Supported RAM Integrity Check
  non-ECC
• Supported RAM (Registered or Buffered)
  unbuffered
• RAM Slots
  2 DIMM slots
• Power Connectors
  24-pin main power connector, 4-pin ATX12V connector

MAINBOARD FEATURES

• BIOS Features
  ACPI 2.0a support, ASUS EFI BIOS, ASUS EZ Flash 2, ASUS MyLogo2, ASUS Quiet Thermal Solution, DMI 2.0 support, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
• Sleep / Wake Up
  wake on LAN (WOL)
• Hardware Features
  ASUS Anti-Surge Protection, ASUS Boot Setting, ASUS EZ DIY, ASUS Fan Xpert, ASUS Fast Boot, ASUS Network iControl, Conductive Polymer Capacitors, CrashFree BIOS 3

INTERFACES

• Storage
  Serial ATA-300
• Storage Ports
  4 x SATA-300
• USB / FireWire Ports Configuration (Active)
  4 x USB 2.0

EXPANSION SLOTS

• Total Qty
  1, 2
• Type
  CPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 3.0 x16

CABLE DETAILS

• Type
  Serial ATA cable
• Included Qty
  2

SOFTWARE

• Software Included
  ASUS AI Charger, ASUS AI Suite II, ASUS EZ Flash 2, ASUS MyLogo2, ASUS Update, drivers & utilities

VIDEO MEMORY

• Max Allocated RAM Size
  1696 MB

DIMENSIONS & WEIGHT

• Width
  8.9 in
• Depth
  7 in

STORAGE INTERFACES

• Interface
  Serial ATA-300
• Connector(s)
  4 x 7pin Serial ATA
• Supported Devices Qty
  4

INTERNAL INTERFACES

• Type
  USB 2.0, audio
• Connector Type
  header
• Qty
  1, 6

FEATURES

• Hardware Features
  ASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, ASUS Fan Xpert, Conductive Polymer Capacitors, ASUS Network iControl, ASUS Boot Setting, ASUS Fast Boot
• BIOS Features
  DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, ASUS EFI BIOS, UEFI BIOS, SMBIOS 2.7 support
• Sleep / Wake Up
  Wake on LAN (WOL)

GENERAL

• Manufacturer
  Asus
