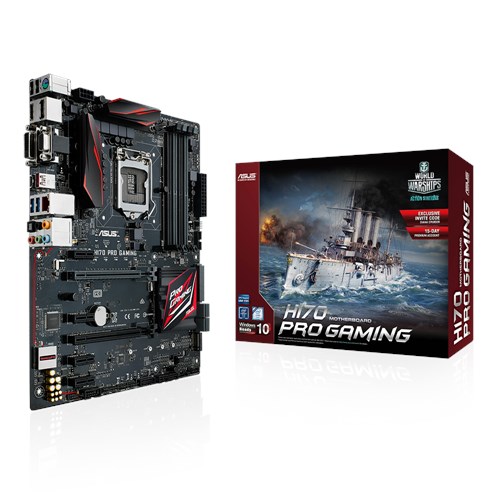

ASUS H170 PROGAMING

Deskripsi

• CPU
  Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H170
• Memory
  4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
  1 x PCIe 3.0/2.0 x16 (x4 mode, black)
  4 x PCIe 3.0/2.0 x1
• Storage
  Intel® H170 chipset :
  1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*¹
  4 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*²
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
  Anti-surge LANGuard
• Audio
  SupremeFX 8-Channel High Definition Audio CODEC
  – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  – High quality 115 dB SNR stereo playback output
  Audio Feature :
  – SupremeFX Shielding™ Technology
  – Optical S/PDIF out port(s) at back panel
  – Sonic Radar II
• USB Ports
  ASMedia® USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, , Type-A)
  ASMedia® USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, , Type-C, Reversible)
  Intel® H170 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, , 4 at mid-board)
  Intel® H170 chipset :
  8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board)
• Special Features
  Gamer’s Guardian:
  – ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  – DRAM Overcurrent Protection
  – Stainless Steel Back I/O
  – Highly Durable Components
  – DIGI+ VRM
  ASUS Exclusive Features :
  – GPU Boost
  – AI Suite 3
  – Ai Charger+
  – USB 3.1 Boost
  – Disk Unlocker
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution & MOS Heatsink
  – ASUS Fan Xpert 3
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  – ASUS Q-Shield
  – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Media Streamer
  RAMCache
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 (black)Type-C
  1 x USB 3.1 (red)Type-A
  2 x USB 3.0
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
• Internal I/O Ports
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Thermal sensor connector(s)
  1 x CPU OV
  1 x Clear CMOS jumper(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x ROG extension (ROG_EXT) header(s)
  1 x 14-1 pin TPM connector
• Accessories
  User’s manual
  I/O Shield
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x 12 in 1 Cable Label (s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
  *2:These functions will work depending on the CPU installed.
