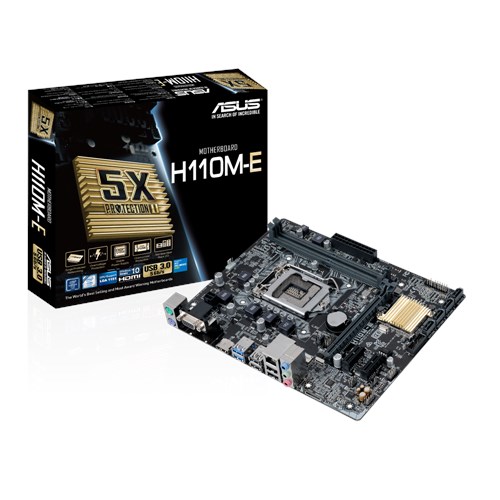

ASUS H110M-E(DDR4)

Deskripsi

• Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H110
• Memory
  2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *¹
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/RGB ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 2 displays simultaneously
• Expansion Slots
  1 x PCIe 3.0/2.0 x1 (x16 mode)
  2 x PCIe 2.0 x1
• Storage
  Intel® H110 chipset :
  4 x SATA 6Gb/s port(s), gray,
  Intel® Rapid Storage Technology supports*²
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *³
  – Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
  – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® H110 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® H110 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)
• Special Features
  ASUS 5X Protection II :
  – ASUS LANGuard – 2.5X higher surge tolerance
  – ASUS Overvoltage Protection – World-class circuit-protecting power design
  – ASUS DIGI+ VRM – 5 Phase digital power design
  – ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
  – ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
  – ASUS ESD Guards – Electrostatic discharge protection
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – Anti-Surge
  – Low EMI Solution
  – USB 3.0 Boost
  – Mobo Connect
  – PC Cleaner
  Remote Entertainment
  – Media Streamer
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution
  – ASUS Fan Xpert
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *⁴
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue)
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  Micro ATX Form Factor
  8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
• Note
  *1: Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
  *2: These functions will work depending on the CPU installed.
  *3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *4: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
