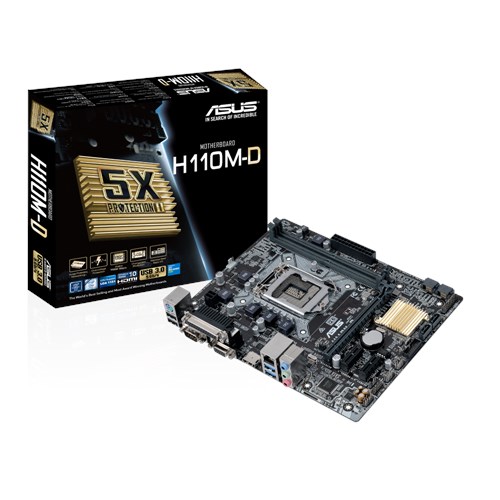

ASUS H110-D(DDR4)

Deskripsi

• CPU
  Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H110
• Memory
  2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/RGB ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 2 displays simultaneously
• Expansion Slots
  1 x PCIe 3.0/2.0 x1 (x16 mode)
  2 x PCIe 2.0 x1
• Storage
  Intel® H110 chipset :
  4 x SATA 6Gb/s port(s), gray,
  Intel® Rapid Storage Technology supports*¹
• LAN
  Realtek® RTL8111H
• Audio
  Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *²
  – Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
  – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® H110 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® H110 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
• Special Features
  ASUS 5X Protection II :
  – ASUS LANGuard – 2.5X higher surge tolerance
  – ASUS Overvoltage Protection – World-class circuit-protecting power design
  – ASUS DIGI+ VRM – 5 Phase digital power design
  – ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
  – ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
  – ASUS ESD Guards – Electrostatic discharge protection
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – Anti-Surge
  – Low EMI Solution
  – USB 3.0 Boost
  – Mobo Connect
  – PC Cleaner
  Remote Entertainment
  – Media Streamer
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution
  – ASUS Fan Xpert
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *³
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue)
  2 x USB 2.0
  1 x COM port(s)
  1 x Parallel port(s)
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM header
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Form Factor
  8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
• Note
  *1: These functions will work depending on the CPU installed.
  *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
