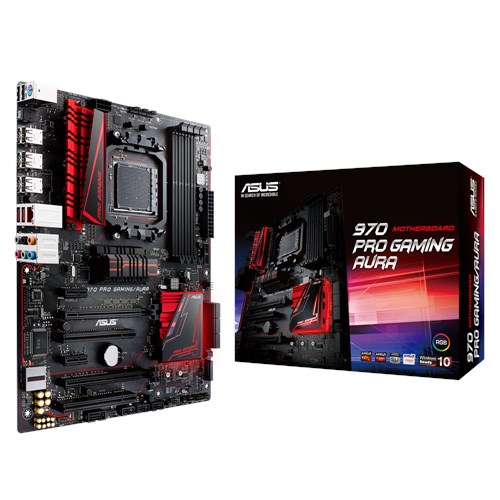

ASUS 970 PRO GAMING AURA

Deskripsi

• CPU
  Build in AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
  Supports AM3+ 32 nm CPU
  Supports CPU up to 125 W
  AMD Cool ‘n’ Quiet™ Technology
• Chipset
  Build in AMD 970/SB950
• Memory
  4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
• System Bus
  Up to 4.8 GT/s HyperTransport™ 3
• Multi-GPU Support
  Supports NVIDIA® Quad-GPU SLI™ Technology
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  2 x PCIe 2.0 x16 (x16 or dual x8)
  2 x PCIe 2.0 x1
  2 x PCI
• Storage
  AMD SB950 controller :
  6 x SATA 6Gb/s port(s), black,
  Support Raid 0, 1, 5, 10
  1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
• LAN
  Intel® I211-AT, 1 x Gigabit LAN Controller(s), GameFirst technology
  Anti-surge LANGuard
• Audio
  SupremeFX 8-Channel High Definition Audio CODEC
  – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  – High quality 115 dB SNR stereo playback output
  Audio Feature :
  – SupremeFX Shielding™ Technology
  – Optical S/PDIF out port(s) at back panel
  – Sonic Radar II
• USB Ports
  ASMedia® USB 3.1 controller :
  2 x USB 3.1 port(s) (2 at back panel, , Type-A)
  ASMedia® USB 3.0 controller :
  2 x USB 3.0 port(s) (2 at mid-board)
  AMD SB950 controller :
  14 x USB 2.0 port(s) (8 at back panel, , 6 at mid-board)
• Special Features
  Gamer’s Guardian:
  – ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  – DRAM Overcurrent Protection
  – Stainless Steel Back I/O
  – DIGI+ VRM
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger+
  – USB 3.1 Boost
  – Disk Unlocker
  ASUS Quiet Thermal Solution :
  – ASUS Fan Xpert 2
  ASUS EZ DIY :
  – ASUS O.C. Tuner
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 2
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Shield
  – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Media Streamer
  RAMCache
  AURA: RGB Lighting Control
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 (red)Type-A
  8 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
• Internal I/O Ports
  1 x ReTry jumper
  1 x Safe Boot jumper
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  1 x TPM header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x Water Pump header (4-pin)
  1 x Slow Mode jumper(s)
• Accessories
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x pack of cable tie
  1 x Supporting DVD
  1 x SLI bridge(s)
  1 x 12 in 1 Cable Label (s)
• BIOS
  64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
