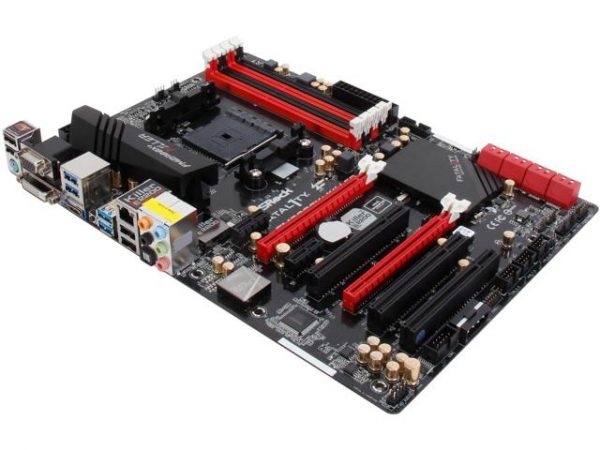

ASROCK FM2 A88X+KILLER

Model

Brand

ASRock

Series

ASRock Fatal1ty Gaming

Model

Fatal1ty FM2A88X+ Killer

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

Athlon/A- Series (FM2+)

Chipsets

Chipset

AMD A88X (Bolton D4)

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2600+(OC)/2400(OC)/2133/1866/1600/1333/1066

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express 2.0 x16

1(@ x4)

PCI Express x1

2 x PCI Express x1

PCI Slots

3 x PCI Slots

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Integrated AMD Radeon R7/R5 Series Graphics in A-series APU

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Qualcomm Atheros KillerTM E2200 Series

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x D-Sub
1 x DVI-D

HDMI

1 x HDMI

USB 3.0

4 x USB 3.0

USB 1.1/2.0

3 x USB 2.0 Ports
1 x Fatal1ty Mouse Port (USB 2.0)

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 6 x USB 2.0

Other Connectors

1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x SLI/XFire Power Connector
1 x Front Panel Audio Connector

Physical Spec

Form Factor

ATX

Power Pin

24 Pin

Features

Features

A-Style : Purity Sound

Gaming Armor
-CPU Power – Hi-Density Power Connector
-VGA Card – 15u Gold Finger, SLI/CrossFireX Power Connector
-Internet – Qualcomm Atheros Killer LAN
-Audio – Purity Sound

Premium Gold Capacitor Design, Digi Power

Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics

Graphics Output Options : D-Sub, DVI-D, HDMI

7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect

Qualcomm Atheros Killer E2200 Series Gigabit LAN

Unique Feature:
– ASRock F-Stream
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock Key Master
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP

Packaging

Package Contents

ASRock Fatal1ty FM2A88X+ Killer Motherboard
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
